Fortinet FCP_FMG_AD-7.6 시험

Question No : 1

Company policy dictates that any time a change is made to a policy package on FortiManager an ADOM revision is created before the change installed, and that revision is held for a minimum of 90 days.
Over the past three months, each installed change has resulted in several unused policies and duplicate objects.
The FortiManager administrator plans to upgrade the FortiGate devices and then upgrade the FortiManager ADOM from version 7.4 to 7.6.
Which action can the administrator take to avoid slow ADOM upgrades?

• A.Check and repair the global configuration database before upgrading.
• B.Export firewall policies to Excel, delete them on the ADO
• C.then reimport them after upgrading the ADO
• D.Find unused firmware templates, then delete them before upgrading.
• E.Limit ADOM revisions before upgrading.

답을 확인하기

정답:
Explanation:
Limiting ADOM revisions reduces the number of stored historical configurations, which helps avoid performance degradation and slow ADOM upgrades caused by a large volume of revisions.

Question No : 2

An administrator configures a new BGP peer in the FortiManager device-level database of FortiGate. They reinstall the policy package to the managed FortiGate device without any errors. However, when the administrator logs in to FortiGate, they do not see the BGP configuration changes.
What is the most likely reason why FortiManager did not push the BGP peer changes to FortiGate?

• A.The administrator must run a sanity check on FortiManager to make sure the database is not corrupted.
• B.Fortigate has a BGP template assigned on the FortiManager database.
• C.The administrator must use the Install Wizard and select Install device settings only to push BGP settings
• D.The FortiGate firmware version is different from the FortiManager ADOM version.

답을 확인하기

정답:
Explanation:
If a BGP template is assigned to the FortiGate device on FortiManager, device-level BGP configurations made directly in the device-level database are overridden by the template settings, so the changes do not get pushed to the device.

Question No : 3

Refer to the exhibit.



FortiManager is operating behind a network address translation (NAT) device, and the administrator configured the FortiManager NATed IP address under the FortiManager system administration settings.
What is the expected result during discovery?

• A.FortiManager sets both the 100.65.0.120 IP address and 10.0.13.120 IP address on FortiGate.
• B.FortiManager sets both the 100.65.0.120 IP address and 100.65.0.101 IP address on FortiGate.
• C.FortiManager sets the 100.65.0.101 IP address on FortiGate.
• D.FortiManager sets the 100.65.0.120 IP address on FortiGate.

답을 확인하기

정답:
Explanation:
When FortiManager is behind a NAT device, setting the NATed IP address (100.65.0.120) in the system admin settings causes FortiManager to use that NATed IP address for communication and configuration with FortiGate during discovery and management operations.

Question No : 4

An administrator has a FortiGate-HQ device with VDOMs―root, HR and Facilities, currently managed under the FortiManager ADOM―Site1. They try to move VDOM HR to the FortiManager ADOM― Site2, but it does not work.
Why is the administrator not able to move FortiGate-HQ VDOM HR to FortiManager ADOM―Site2?

• A.The FortiGate-HQ must be managed under the FortiManager ADOM―root to allow moving its VDOMs to different ADOMs.
• B.The administrator must have full access in the device layer of FortiGate-HQ VDOM-root before they can VDOMs to different ADOMs.
• C.FortiManager must be in ADOM normal mode, which does not allow VDOMs to be managed separately.
• D.The administrator must delete the FortiGate-HQ device from FortiManager and add it again using the Add Device wizard before moving the VDO

답을 확인하기

정답:
Explanation:
FortiGate devices must be managed under the FortiManager ADOM corresponding to the root VDOM to allow their individual VDOMs to be moved and managed in different ADOMs. Managing the root VDOM in a different ADOM prevents moving subordinate VDOMs across ADOMs.

Question No : 5

The administrator uses FortiManager to push a CLI script using the Remote FortiGate Directly (via CLI) option to configure an IPsec VPN.
However, when running the script, the administrator receives the following error:
config vpn ipsec phase2-interface [parameter(s) invalid. detail: object mismatch]
What must the administrator do to resolve the script error and successfully apply the IPsec configuration?

• A.Add the end command after finishing the IPsec phase 1-interface configuration block.
• B.Use IPsec templates to deploy provisioning templates.
• C.Add a second config vpn ipsec phase2-interface block without linking it to phase1.
• D.Run the script using the policy package or ADOM database method.

답을 확인하기

정답:
Explanation:
Running the script through the policy package or ADOM database method allows FortiManager to properly interpret object relationships and dependencies in the IPsec configuration, preventing object mismatch errors when pushing complex VPN settings directly via CLI.

Question No : 6

Push updates are failing on a FortiGate device located behind a network address translation (NAT) device?
Which two settings should the administrator check to correct this problem? (Choose two.)

• A.Make sure the NAT device IP address and the correct ports are configured on FortiManager.
• B.Make sure FortiGuard updates and web service are enabled on the FortiGuard service interface.
• C.Make sure the virtual IP address and the correct ports are configured on the NAT device.
• D.Make sure the Bind to IP address option on the FortiGuard service interface is set to the virtual IP address from the NAT device.

답을 확인하기

정답:
Explanation:
FortiManager must have the NAT device's IP address and correct ports configured to communicate properly with the FortiGate behind NAT.
The NAT device must have the correct virtual IP address and ports configured to allow push updates to reach the FortiGate device.

Question No : 7

Refer to the exhibit.



An administrator created two new meta fields in FortiManager.
Which operation can you perform with these parameters?

• A.You can add them to objects as custom attributes.
• B.You can export them to be used in other ADOMs.
• C.You can use them as variables in scripts.
• D.You can invoke them using the $ character.

답을 확인하기

정답:
Explanation:
Meta fields in FortiManager can be added to objects as custom attributes, allowing administrators to categorize and add additional information to firewall objects for easier management and identification.

Question No : 8

Refer to the exhibit.



An administrator assigned a new policy package to FortiGate HQ-NGFW-1. In the installation preview, they noticed some settings they did not modify and are unsure about the changes.
Based on the exhibit, which two things will happen if they continue with the installation? (Choose two.)

• A.FortiGate HQ-NGFW-1 can use FortiManager firmware templates to upgrade firmware and ratings.
• B.FortiGate HQ-NGFW-1 can contact the FortiManager acting as FortiGuard Distribution Server (FDS) to download FortiGuard updates.
• C.FortiGate HQ-NGFW-1 will use the root_CA3 certificate in firewall address objects or policies.
• D.FortiManager will install the CA certificate named root_CA3 to authenticate FortiGate-to-FortiManager communication protocol (FGFM) tunnel connections with FortiGate HQ- NGFW-1.

답을 확인하기

정답:
Explanation:
The configuration includes a server-list with server-type set to "update rating," which enables FortiGate HQ-NGFW-1 to contact FortiManager as a FortiGuard Distribution Server (FDS) for FortiGuard updates.
The installation includes a root_CA3 certificate, which FortiManager will install on FortiGate HQ-NGFW-1 to authenticate FGFM tunnel connections between the devices.

Question No : 9

What is the purpose of ADOM revisions?

• A.ADOM revisions find unused, duplicate, and unnecessary firewall policies and objects.
• B.ADOM revisions show specific changes in a policy package when it is installed.
• C.ADOM revisions compare previous snapshots of the Policy Package and ADOM-level objects with the device-level database.
• D.ADOM revisions save the current state of all policy packages and objects for an ADO

답을 확인하기

정답:
Explanation:
ADOM revisions save the current state of all policy packages and objects within an ADOM, allowing administrators to track changes over time and revert to previous configurations if needed.

Question No : 10

What is the best explanation of how FortiManager helps with mass provisioning?

• A.It upgrades the OS of each FortiGate device.
• B.It provides local FortiGuard Distribution Server (FDS) services to the network.
• C.It uses templates to configure the same settings on many devices simultaneously.
• D.It sends email alerts when new devices connect.

답을 확인하기

정답:
Explanation:
FortiManager helps with mass provisioning by using templates that allow administrators to configure the same settings on multiple FortiGate devices simultaneously, streamlining deployment and management.

Question No : 11

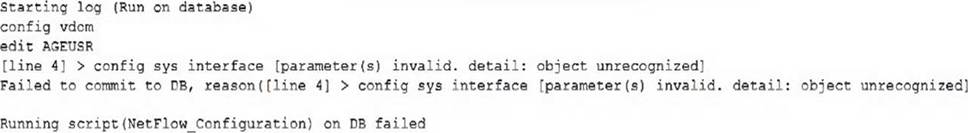

While attempting to push a NetFlow configuration script through the FortiManager policy package:
an administrator encounters an error stating that an object is unrecognized in line 4.



What must the administrator do to successfully apply the NetFlow configuration script and avoid the object unrecognized error?

• A.Make sure the user running the script has full access to the VDOM―AGEUS
• B.Run the script on the device database.
• C.Use metadata variables if they use VDOMs in the script.
• D.Create a normalized interface on the policy layer before running the script.

답을 확인하기

정답:
Explanation:
When using scripts that reference VDOM-specific objects, such as interfaces, in FortiManager, metadata variables must be used to correctly map those objects per VDOM. This prevents "object unrecognized" errors during script execution.

Question No : 12

Which is recommended when you are managing a high volume of logs in your network?

• A.Store logs on FortiManager and use FortiView.
• B.Add and manage FortiAnalyzer from FortiManager.
• C.Enable advanced ADOM mode on FortiManager.
• D.Forward logs from FortiAnalyzer to FortiManager daily.

답을 확인하기

정답:
Explanation:
Adding and managing FortiAnalyzer from FortiManager is recommended for handling a high volume of logs, as FortiAnalyzer is designed specifically for centralized log management, analysis, and reporting, which offloads this workload from FortiManager.

Question No : 13

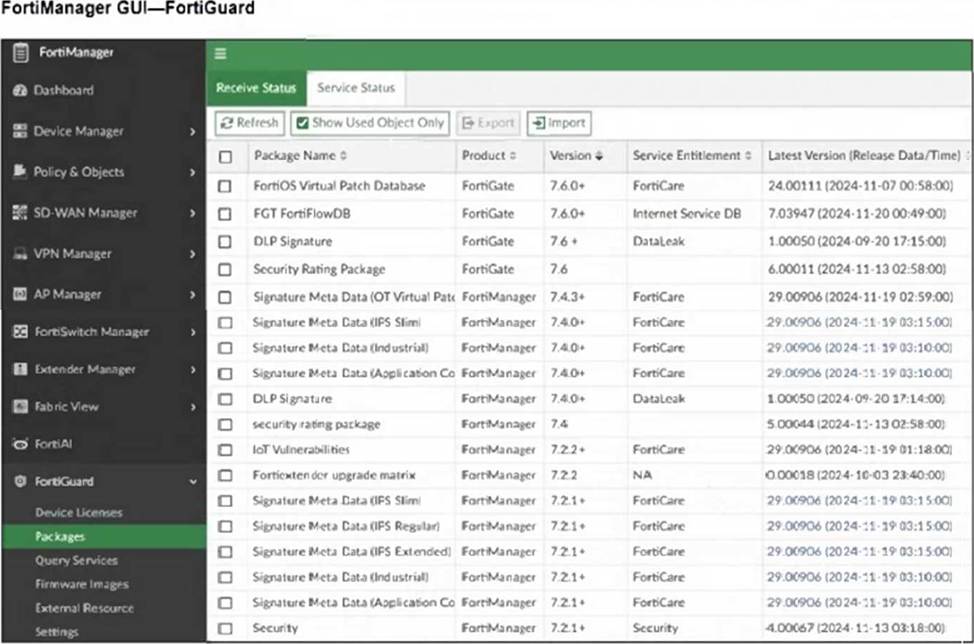

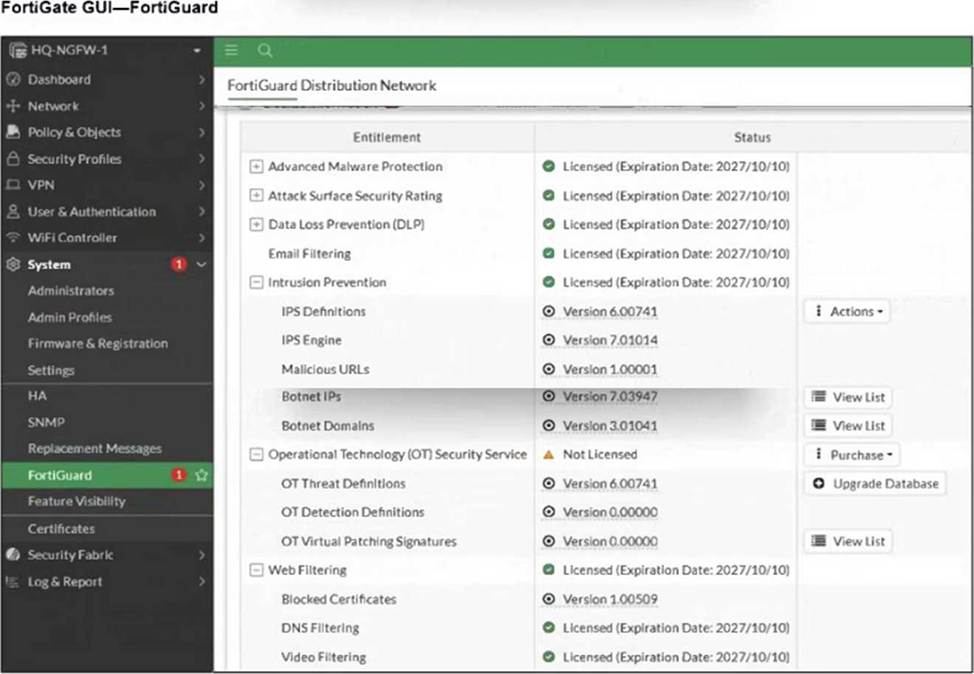

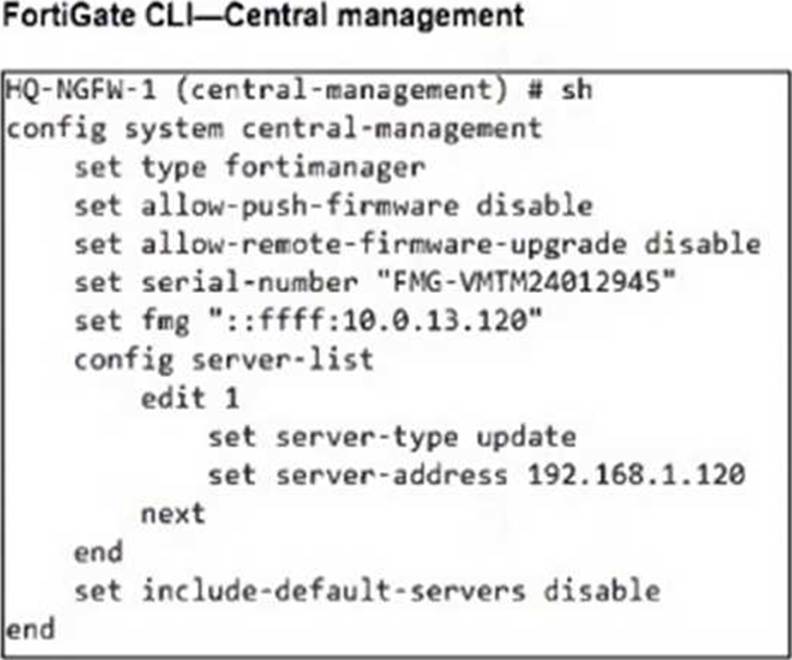

Refer to the exhibits.









FortiGate HQ-NGFW-1 downloads and validates FortiGuard databases from FortiManager which acts as a local FortiGuard Distribution Server (FDS) in a closed network. An administrator pushes a new firewall policy with an intrusion prevention system (IPS) profile from FortiManager to FortiGate HQ-NGFW-1 However, FortiGate does not recognize the new IPS signature from FortiManager.
What is the most likely reason why FortiGate HQ-NGFW-1 does not recognize the new IPS signature?

• A.FortiGate must enable rating for the FortiManager IP address, 192.168.1.120, in server list 1.
• B.FortiManager and FortiGate have different IPS database versions.
• C.The administrator must enable IPv6 connections for FortiGuard services on FortiManager.
• D.The administrator must enable the fortiguard-anycast option to correctly download all signatures from the local FD

답을 확인하기

정답:
Explanation:
The most likely reason FortiGate HQ-NGFW-1 does not recognize the new IPS signature is that FortiManager and FortiGate have different IPS database versions. The FortiManager may have pushed a signature update that FortiGate has not yet synchronized or validated locally, causing the signature to be unrecognized.

Question No : 14

An administrator has assigned a global policy package to a new ADOM named ADOM1.
What will happen if the administrator tries to create a new policy package in ADOM1?

• A.The administrator will be able to select the option to assign the global policy package to the new policy package.
• B.FortiManager will automatically assign the global policy package to the new policy package.
• C.FortiManager will automatically install policies on the policy package in ADOM1.
• D.The administrator will have to assign the global policy package from the global ADO

답을 확인하기

정답:
Explanation:
When a global policy package is assigned to an ADOM, administrators creating new policy packages within that ADOM have the option to select and assign the global policy package to the new policy package if desired.

Question No : 15

Which two conditions trigger FortiManager to create a new revision history? (Choose two.)

• A.When FortiManager installs device-level changes on a managed device
• B.When changes to the device-level database are made on FortiManager
• C.When FortiManager is auto-updated with configuration changes made directly on a managed device
• D.When a provisioning template is assigned to a managed device on the device-level database

답을 확인하기

정답:
Explanation:
FortiManager creates a new revision history entry whenever changes are made to the device-level database on FortiManager.
FortiManager also creates a new revision when it auto-updates its database with configuration changes detected directly on a managed device.
